This self-consumption solar kit with battery is the ideal solution for producing and consuming your own energy, day and night. Thanks to the Pylontech lithium battery and Victron inverter, you benefit from a high-performance, autonomous system without grid injection. Result: no Consuel procedures to consider, simplified commissioning, and real savings from the first year.
Advantages:
– Store your energy for use when you need it
– Simplified installation, no grid injection or administrative procedures
– High-end components: bifacial panels, Pylontech battery, Victron MultiPlus
– Permanently reduce your electricity bills
Estimated production:
With 450 Wp panels, this kit can produce up to 2,000 kWh/year in central France. Based on this, you save approximately €600 per year (calculated at €0.30/kWh).
Why choose this kit?
– Turnkey solution, reliable and scalable
– Option to add panels or batteries
– Tailored support from our experts
Don't waste energy anymore!
Request your free quote today and benefit from personalized assistance from our Wattuneed advisors.
Victron Multiplus
Victron Multiplus
Victron Multiplus
Cable length
Cable length
Cable length
Choose our solar set to optimally illuminate your minimalist home.
This solar kit offers customized options to perfectly meet your energy needs.
It is capable of operating alternately with the public grid or with a generator.

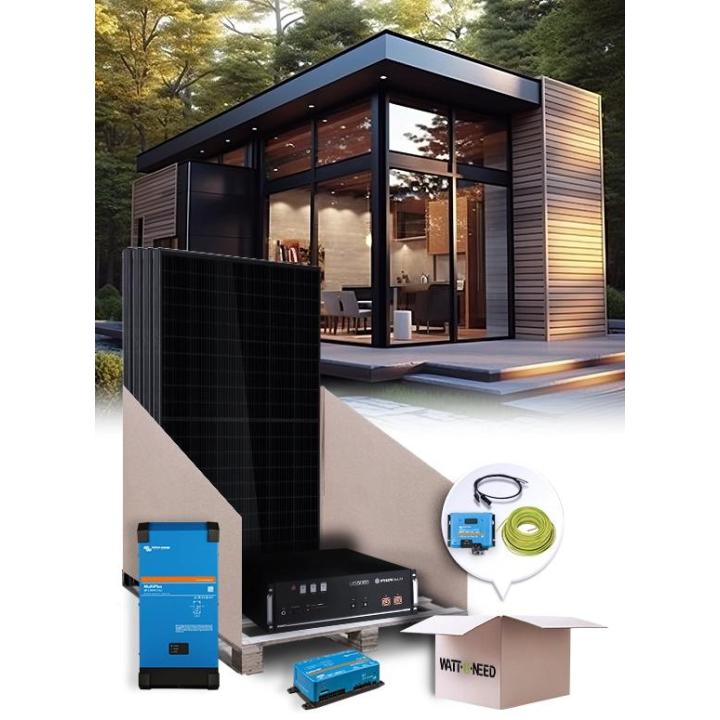

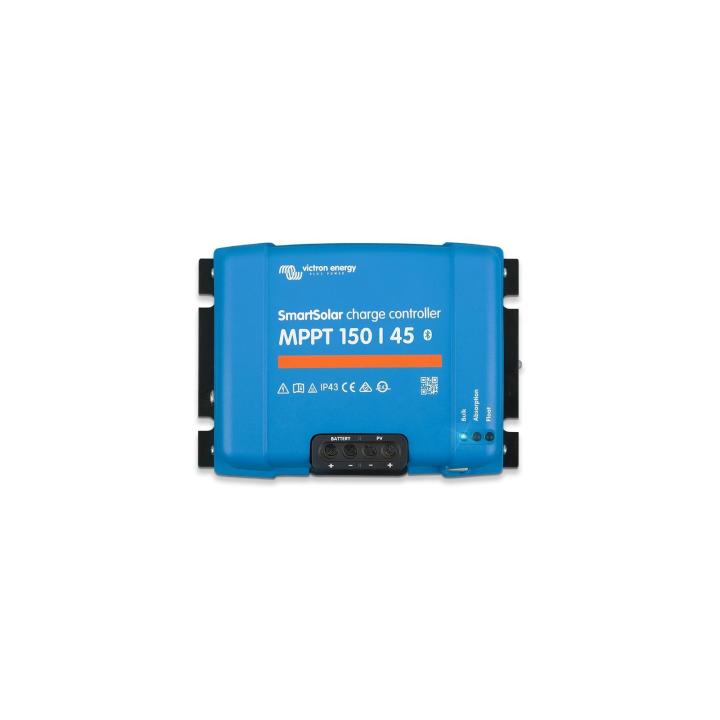

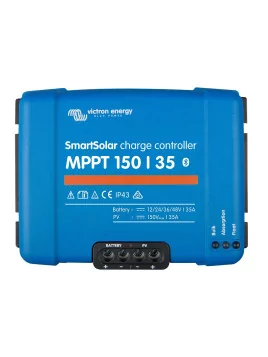

The basic composition of the kit includes 4 solar panels, a MultiPlus 48V 2000VA inverter, a Victron SmartSolar regulator, a Pylontech US5000 lithium battery, a Cerbo-GX, solar cables to connect the panels to the inverter, and the panel mounting system is available as an option. (The mounting system as well as the wiring and protections are customizable to meet your needs).
All our kits are configurable. In the options, you can click on the product to choose another model or change quantities to adapt the kit to your needs.
You can also view the details of the selected products directly below the price.
 |
Important notice for our customers in Belgium: An environmental contribution of € 114.73 excluding VAT will be applied to the purchase of each Pylontech US5000 lithium battery. More information at the bottom of the page. |

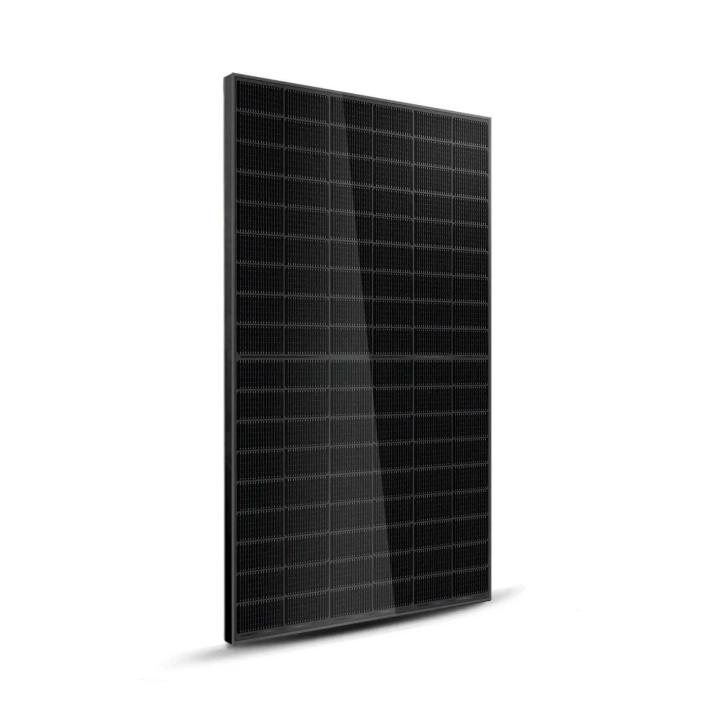

See its product sheet in our panels section to find out more.
And don't forget, we offer you the flexibility to choose the panel model you prefer.
We invite you to consult our solar production simulator to determine exactly what your solar production will be.
|
Perc |
N-Type |
HJT |
|
|
Efficiency |
Approximately 19-22% | Approximately 20-23%. | Environ 21-24% |
|
Cost |
Moderate | High | Very high |
|
Temperature coefficient |
Approximately -0.3 à 0.4% per °C | Approximately -0.3% per °C | Approximately -0.2% Per °C |
|
Annual degradation |
Approximately 0.5 - 07% | Approximately 0.4 - 0.5% | Less than 0.5% |
|
Durability |
Good | Very good | Excellent |

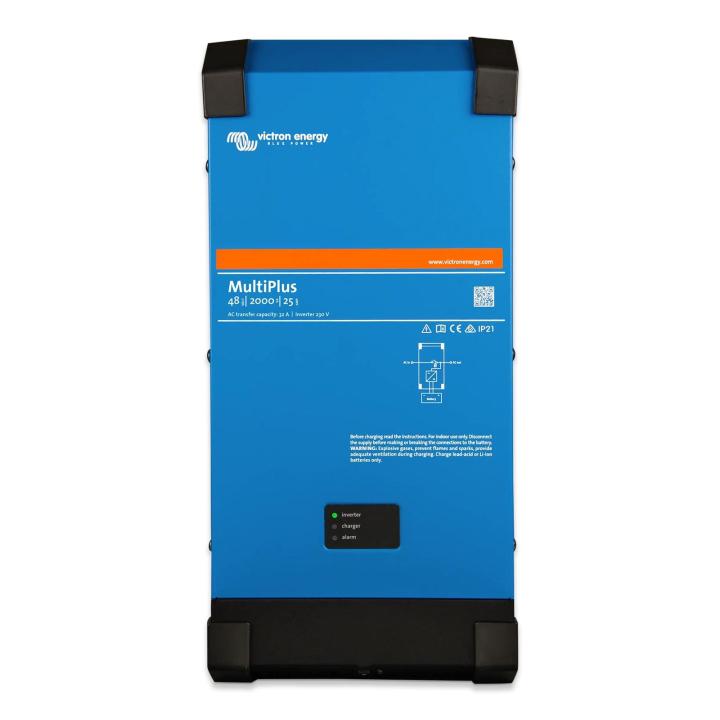

The Victron MultiPlus is an all-in-one multifunction device combining a powerful pure sine wave inverter, an adaptive battery charger, and an ultra-fast AC transfer switch. Designed for solar installations with storage, it optimizes self-consumption and ensures smart energy management.
With the PowerControl feature, the MultiPlus automatically adapts to the power limits of a shore connection, generator, or grid. PowerAssist can even temporarily supplement power shortages using battery energy.
Parallel and three-phase operation: up to 6 units for higher output power.
4-stage adaptive charging: extends lithium or lead battery life.
High surge power: ideal for high startup current loads (tools, LEDs, etc.).
Eco mode (Search Mode): reduces idle power consumption by up to 70%.
Programmable relay for alarms or custom functions.

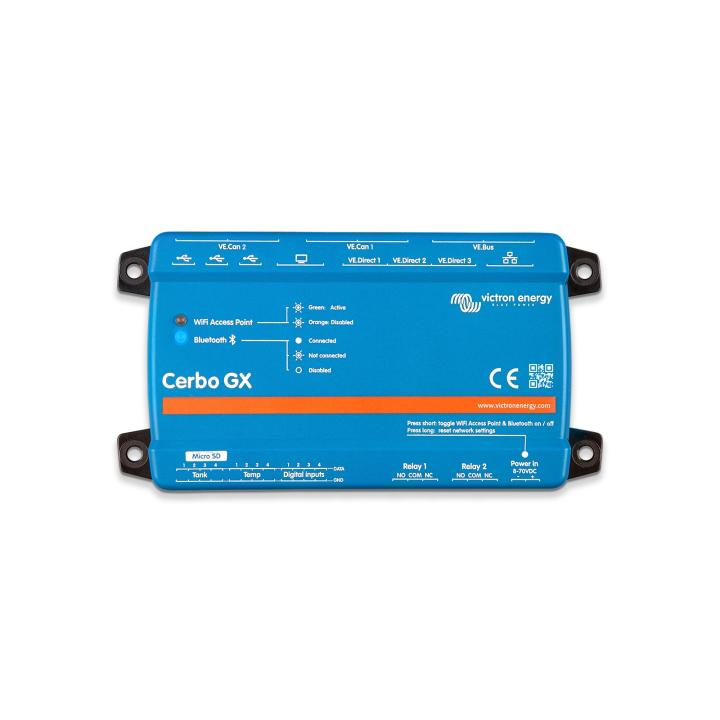

Remote monitoring and control via Cerbo GX, VRM portal, and Victron Connect app.
Flexible configuration: DIP switches, VE.Config software, or VE.Bus Smart dongle.
The MultiPlus is the perfect solution for efficient, stable, and connected solar self-consumption, whether grid-tied or off-grid. Ideal for off-grid homes, remote sites, RVs, and boats.
Lead-acid GEL batteries (gel electrolyte) are ideal for daily discharge of 50% of their capacity, ensuring optimum performance. For example, if your fleet has a capacity of 4.8kWh, it's advisable to consume no more than 2.4kWh per day to comply with the manufacturer's recommendations. You can, however, allow for a slight margin, as these batteries can withstand faster discharges over shorter periods.
Lithium batteries, on the other hand, offer additional advantages: they can be discharged much faster than lead-acid batteries, and allow you to use up to 90% of their capacity. So you can count on greater flexibility of use with lithium batteries.
To determine the capacity of your battery, simply multiply its capacity (Ah) by its voltage (V). For example, 4 x 100Ah 12V batteries connected in series will give a voltage of 48V and a total capacity of 4.8kWh.
And to make your life easier, our sizing tool will help you calculate your precise battery requirements for your stand-alone solar kit. Put your trust in our expertise and embark on a tailor-made energy solution!
Optimize your installation by choosing a suitable, high-performance storage solution.
Store your surplus solar production for later use to get rid of the grid.

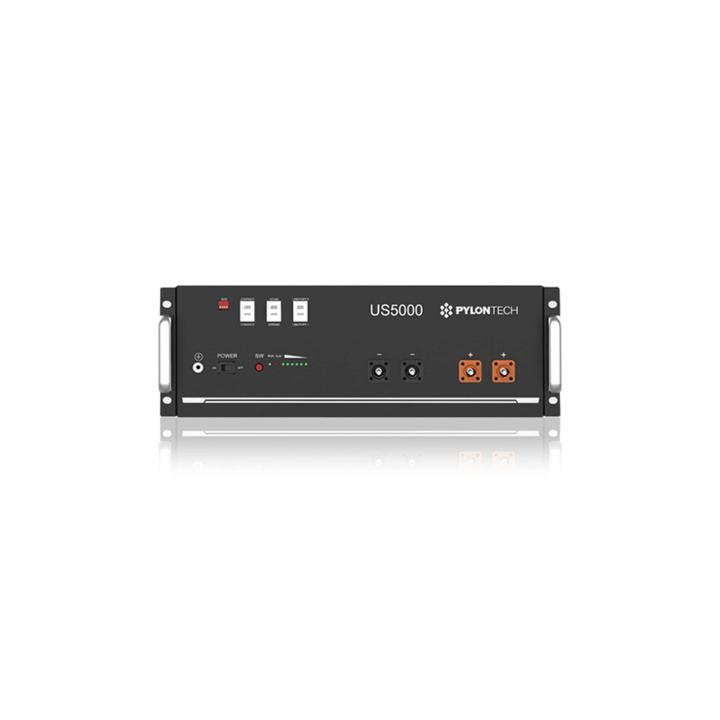

We chose Pylontech lithium batteries for many reasons:
- 7 to 10-year product warranty;
- Fast charge/discharge speed;
- Possibility of upgrading capacity whenever you want;
- No technical capacity limits.
We offer two different capacities. They are compatible with each other.
|
Battery storagePylontech US3000C |
|
Battery storagePylontech US5000 |
||||||||||||
Rated capacity |
 DOD 95% |
Rated capacity 100 Ah |
DOD 95% |
|||||||||||
|
Tension |
Charge/discharge |
Tension |
Charge/discharge |
|||||||||||
|
|
Upgradable |
Cycle |
Upgradable |
|||||||||||
Benefits
• Over 6000 cycles at 95% discharge • Compact modular design for easy capacity expansion • Supplies up to 3.552KW • Useful capacity of 4560Wh • Short current/time duration of <2000A/1ms • TüV CE UN38.3 safety certificate • Price per kwh: 0.08 cent |
Benefits• Over 6000 cycles at 95% discharge • Compact modular design for easy capacity expansion • Supplies up to 4.8KW • Useful capacity of 3374Wh • Short current/time duration of <4000A/2ms • TüV CE UN38.3 safety certificate • Price per kwh: 0.08 cent |
|||||||||||||
|
