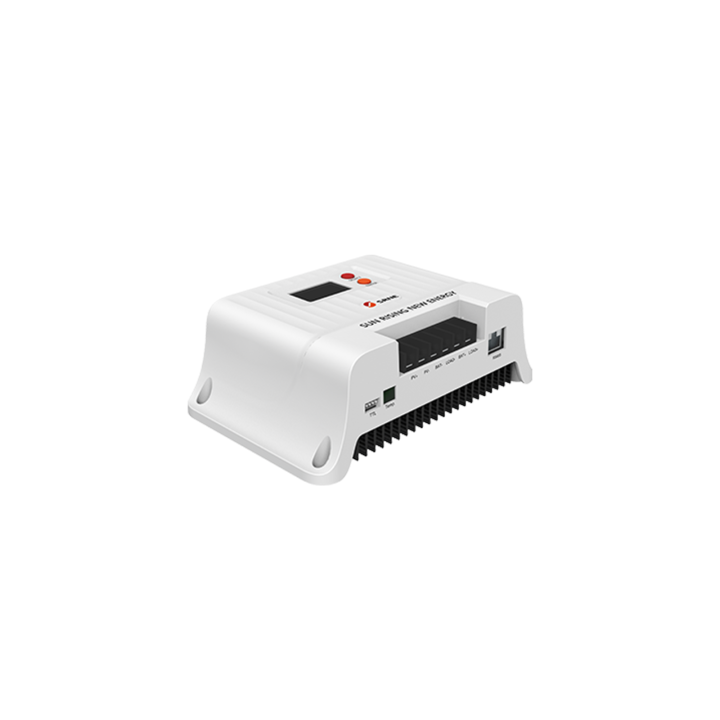

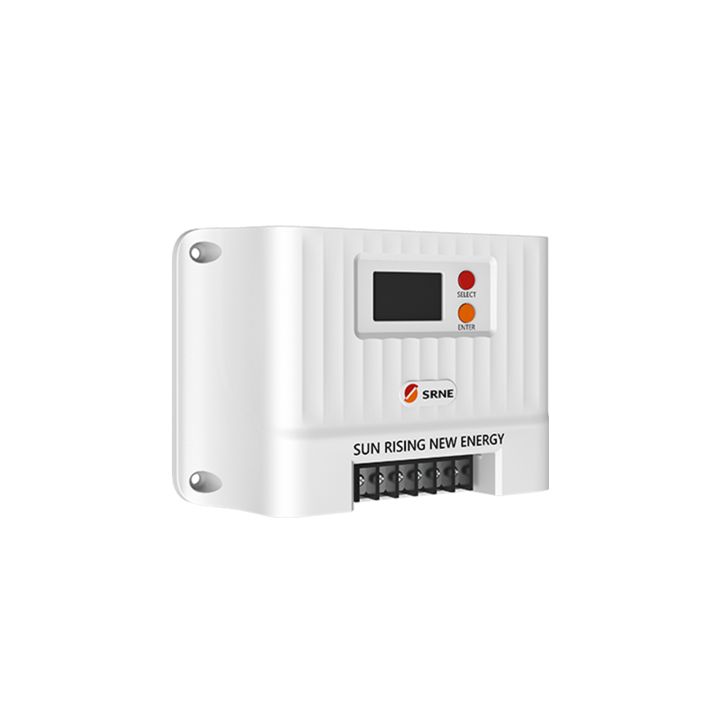

Solar controller SRNE SHINER MPPT 12/24V 30A SHINER2430-B

€120.49

Tax included

Reference: SHINER2430-B

EAN13: 0768563820472

- Maximum open-circuit voltage: 60Vdc
- Nominal battery voltage: 12/24Vdc
- Nominal charging current: 30A
- MPPT tracking efficiency: >99%

12 item(s) left in Stock!

Comments (0)

No customer reviews for the moment.

Présentation régulateur SRNE SHINER

Can be connected to solar panels, battery and load at the same time. Several load operating modes to meet diverse needs.

Maximum power point tracking (MPPT) with up to 99.9% efficiency. Supports up to 2 solar panels in series/more in parallel.

Supports multiple battery types. Highly integrated, helps you save space and wiring

Complete charge and discharge protection mechanism. High-quality components for stable operation.

Easy to install and simple to use. Natural cooling, totally silent.

Supports TTL RS485 and CAN (RV-C protocol). Supports Bluetooth with mobile application.

Reference SHINER2430-B

Max.Voltage of Open Circuit: 60Vdc
MPPT Voltage Range: (Battery voltage+2V)～72Vdc
Max.PV Input Power: 400W/12V - 800W/24V
Charging power: 30A
Voltage: 12V / 24V
MPPT/PWM: MPPT
Battery Type: USE/FLD/GEL/LI/SLD/ User Defined
Rated Battery Voltage: 12/24/36/48Vdc
12/24Vdc
Battery Voltage Range: 8~32Vdc
MPPT Charging Mode: Buck
Load Type: Resistive, Capacitive, Inductive load
Rated load voltage: Equal to battery voltage 12V/24V/36V/48V
Rated load current: 20A
30A
Load Working Mode: Light control,Light control + Time control, manual control (default), Debugging mode, Normal open
MPPT Tracking Efficiency: less than 99%
Max. Load conversion efficiency: 85%~98%(Correspond load power10%~100%)
Weight: 2.64lb
Dimensions (L x W x D): 7.3*5.2*2.8in
