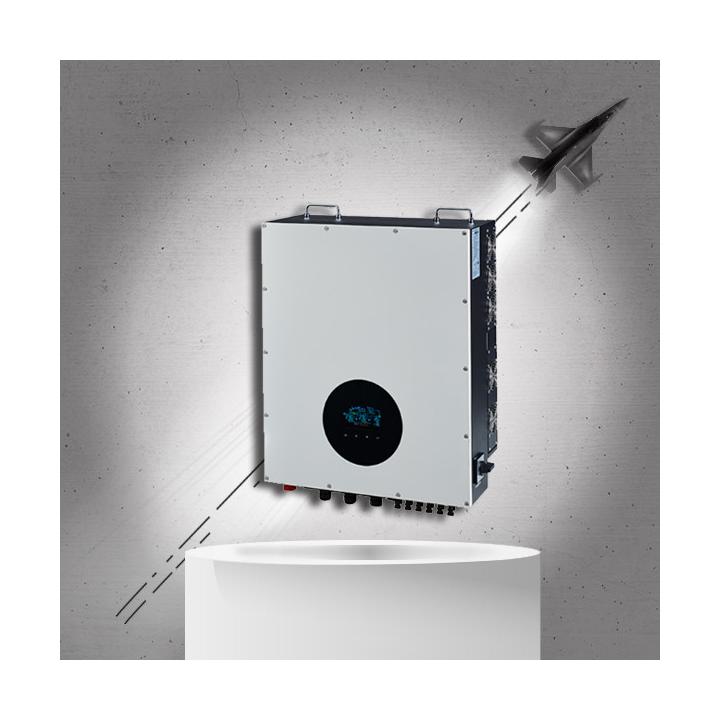

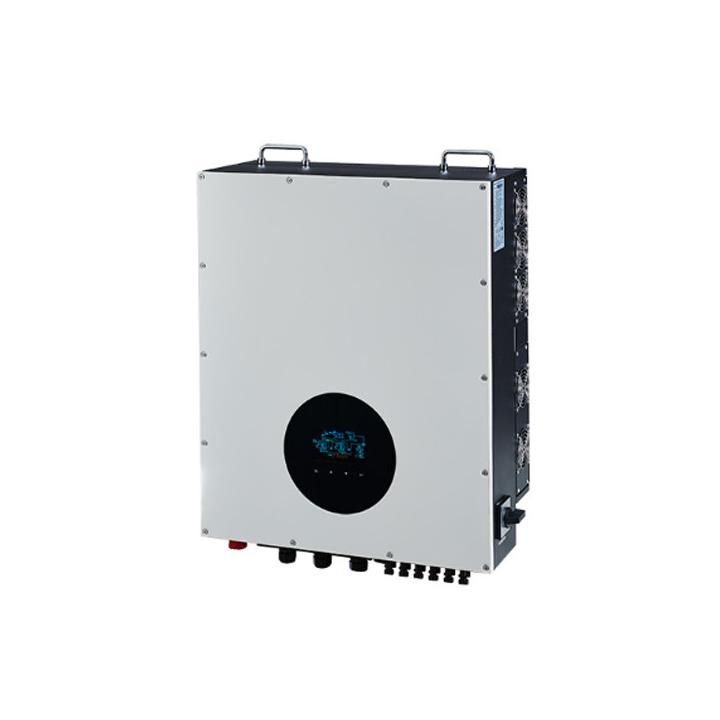

Three-phase hybrid inverter Multisolar F16 30kW grid feed

€6,100.42
Tax included
Multisolar-F16
0768563820083

Multisolar F16 30kW inverter: control your solar energy with total flexibility

The Multisolar F16 30kW three-phase hybrid inverter is designed to optimize your solar energy production and offer you great flexibility of use. Robust and high-performance, it adapts to all your needs, whether for a domestic or professional installation.

Why choose the Multisolar F16 30kW inverter?

  • Maximum flexibility: Thanks to its AC coupling function, it integrates easily into your existing system and offers multiple configuration possibilities.
  • Robusticity: Its IP65 certification means it can withstand the elements and harsh environments.
  • Optimum performance: It efficiently manages unbalanced loads of up to 150% and offers dual output for intelligent energy management.
  • Connectivity: Integrated WiFi and RS485 communication port enable remote monitoring and control.

Key benefits:

  • Optimized self-consumption: Maximize the use of your solar energy to reduce your bills.
  • Reliability: Benefit from robust, durable equipment for long-term use.
  • Easy installation: Installation is simplified thanks to its many integrated features.

Multisolar F16 30kW: The ideal solution for customized solar energy.

Sorry, there are no more items in stock.

Comments (0)

No customer reviews for the moment.

30kW three-phase hybrid inverter: Flexibility and performance with Multisolar F16

IP 65 three-phase hybrid solar inverter with 150% unbalanced load.

With IP65 protection, Multisolart F16 is suitable for outdoor applications and indoor environments where atmospheric humidity and dust are present. It supports a 150% unbalanced load, and the maximum load can reach 15kW for each phase. This flexibility can facilitate different energy consumptions in a domestic environment. With the integrated AC coupling function, the existing system on the grid can be easily upgraded and extended to a hybrid system. The Multisolar F16 30Kw also offers a second terminal for the user's choice of generator input or programmable output.

- Water and dust tightness (IP65) makes the inverter available for a variety of working conditions.
- 150% unbalanced load support
- Dual output for intelligent load management
- Integrated AC coupling function
- Integrated WiFi for mobile monitoring (application available)
- User-adjustable charging current up to 50A
- Wide range of battery inputs
- Integrated communication port for BMS (RS485)
- Parallel operation of up to 4 units

Features

Model Multisolar F16 30kW
Maximum PV input power 40000W
Rated output power 30000W
Maximum load power 18000W
Network operation
PV input (DC)
Rated DC voltage / Maximum DC voltage 720VDC / 1000 VDC
Start-up voltage / Initial supply voltage 320 VDC / 350 VDC
MPP voltage range 350 VDC ~ 900 VDC
Number of MPP trackers / Maximum input current 3/A : 26A, B:26A, C : 26A
Number of strings per MPP tracker A:2, B:2, C:2
MAINS/UTILITY OUTPUT (AC)
Rated output voltage 230VAC (P-N) / 400 VAC (P-P)
Output voltage range 184-265 VAC per phase
Rated output current 43.5 A per phase
Power factor 0,9 lag à 0,9 lead
EFFICIENCY
Rendement de conversion maximum (DC/AC) 96.5%
Rendement européen@ Vnominal 96%
OFF-GRID OPERATION
AC INPUT
AC starting voltage / Automatic restart voltage 120 - 140 VAC / 180 VAC per phase
Acceptable input voltage range 170 - 280 VAC per phase
Maximum AC input current 50A
PV INPUT (DC)
Tension DC maximale 1000 VDC
Plage de tension MPP 350 VDC ~ 900 VDC
Nombre de trackers MPP / Courant d'entrée maximum 3 / A : 26A, B : 26A, C : 26A
BATTERY MODE OUTPUT (AC)
Rated output voltage 230 VAC (P-N) / 400 VAC (P-P)
Output waveform Pure sine wave
Efficiency (DC to AC) 96%
HYBRID OPERATION
PV INPUT (DC)
Maximum DC voltage 1000 VDC
Start-up voltage / Initial supply voltage 320 VDC / 350 VDC
MPP voltage range 350 VDC ~ 900 VDC
Number of MPP trackers / Maximum input current 3 / A : 26A, B : 26A, C : 26A
MAINS OUTPUT (AC)
Rated output voltage 230 VAC (P-N) / 400 VAC (P-P)
Output voltage range 184 - 265 VAC per phase
Rated output current 43.5 A per phase
AC INPUT
AC starting voltage / Automatic restart voltage 120 - 140 VAC / 180 VAC per phase
Acceptable input voltage range 170 - 280 VAC per phase
Maximum AC input current 50A
BATTERY MODE OUTPUT (AC)
Rated output voltage 230 VAC (P-N) / 400 VAC (P-P)
Efficiency (DC to AC) 96%
BATTERY AND CHARGER
Battery voltage range 600 ~ 1000 VDC
Maximum charging current 30 A
GENERAL
PHYSICS
Dimensions, D x W x H (mm) 255 x 660 x 750
Net weight (kgs) 73
INTERFACE
Communication port RS-232, USB, CONTACT SEC, RS-485 and Wi-Fi
Smart slot Optional SNMP, MODBUS and GPRS
ENVIRONMENT
Humidity 0 ~ 100% RH
Operating temperature -From -25°C to 60°C (derating >45°C)
Altitude 0 ~ 1000 m**
‘*These figures are based on the VDE-4105 standard. All figures may vary depending on AC voltage and country requirements.

SolarPower 1.20SP10

    Multisolar-F16

    Data sheet

    Inverter power
    30000VA
    Phase
    Triphasé
    Number of MPPT
    2 MPPT
    Width
    660 mm
    Height
    750 mm
    Thickness
    255 mm
    Inverter type
    Hybrid
    Weight
    73 Kg

    Specific References

    UPC
    768563820083
    EAN13
    0768563820083
