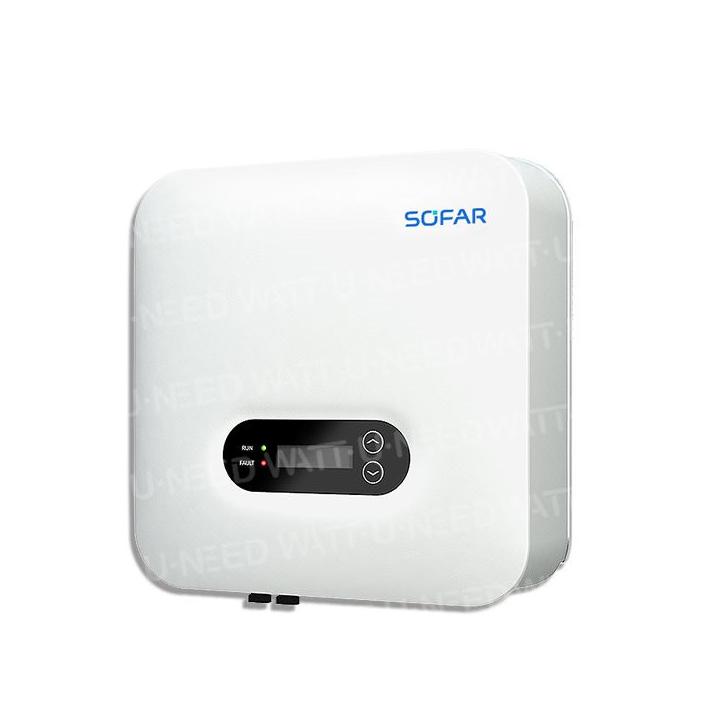

• Single-phase inverter Sofar Solar 4KTLM-G3

Single-phase inverter Sofar Solar 4KTLM-G3

€552.90
Tax included
Sofar-4KTLM-G3
0768563819896

Single-Phase Inverter Sofar Solar 4KTLM-G3: Optimize Your Solar Energy Production with Dual MPPT Trackers

The Sofar Solar 4KTLM-G3 inverter is designed for demanding residential photovoltaic installations. With its dual MPPT trackers, it maximizes energy production even in variable shading conditions. Its compact and silent design, combined with simplified installation, makes it an ideal choice for individuals concerned about their energy consumption.

Why choose the Sofar Solar 4KTLM-G3?

  • Maximum Efficiency: 98.4% efficiency with MPPT technology.
  • Unique Adaptability: Fits all configurations, even shaded ones.
  • Easy Installation: Plug & Play, IP65, quick setup.
  • Connected Monitoring: Track your production in real-time.
  • Enhanced Safety: Optimal protection with optional AFCI.

Key Advantages:

  • Self-Consumption Optimization: Maximize the use of your solar energy.
  • Reliability: Robust and durable design.
  • Silent and Compact: Discreet installation with natural cooling.

Ideal for:

  • Residential photovoltaic installations with complex configurations (shading, different orientations).
  • Individuals looking to maximize their solar energy production.

Simplify your solar installation with the Sofar Solar 4KTLM-G3 inverter.

Request your personalized quote today and choose a high-performance, durable solar energy solution.

Sorry, there are no more items in stock.

Comments (0)

No customer reviews for the moment.

Sofar 4.0KTLM-G3: The connected solar inverter for a smart home

The new G3 single-phase inverter with 2 MPPT trackers for residential PV systems

SOFAR 3K...6KTLM-G3 is the upgraded version of SofarSolar's residential inverter series. With its elegant IP65 design and natural cooling for silent operation, the inverter is perfectly suited to small residential installations.

The inverter is also equipped with two MPPT trackers and an integrated I-V curve scanning function, making it possible to realize more complex installations, for example those with shading problems or different roof orientations.

A WiFi key is supplied with the inverter, for easy connection to the SofarSolar monitoring portal.

High efficiency

- Maximum efficiency of 98.2%.
- Precise real-time MPPT algorithm for maximum utilization
- Wide input voltage operating range

All in one. Flexible, cost-effective system solution

- Free choice of location thanks to IP65 rating
- Plug & Play" connection for easy installation and maintenance
- Interface selection - Wi-Fi / RS485 /GPRS
- LCD + LED display
- Integrated zero export function (optional)

Low maintenance costs

- Detachable lid for easy installation
- Stainless aluminum covers
- A flexible control solution

Intelligent grid management

- Reactive power capacity
- Automatic power reduction in the event of overfrequency
- Remote control of active/reactive power limit

Specifications

DC INPUT
PV input power max.
Recommended 6000 Wp
Max. power.
DC power per MPPT 3500 W
Number of MPP trackers
Number of DC inputs
for each MPPT
Max. input voltage 600
V
Starting voltage 90 V
Nominal input voltage 380 V
MPPT operating voltage range 80 - 550 V
Full MPPT power in voltage range 200 - 500 V
Max. MPPT input current 15
/ 15 A
Max. input short-circuit current
Per MPPT 22.5 / 22.5 A
AC output
Rated power 4000 W
Max. power.
In AC 4400 VA
Max. output current 20

N

ominal mains voltage / N / PE,
230 Vac
Mains voltage range 180 - 276 Vac (according to local standards)
Nominal mains frequency 50 Hz / 60 Hz
Mains frequency range 45 - 55 Hz / 55 - 65 Hz (according to local standards)
Adjustable active power range
- 100 %
THDi <
3%
Power factor
default (adjustable +/-0.8)
PERFORMANCE
Max. efficiency. 98,20
Weighted European efficiency 97.30%
PROTECTION
Protection against polarity reversal in direct current Yes
DC switch Optional
Safety protection Anti-islanding,
leakage current detection, earth fault monitoring
Lightning arrester Varistor :
Type III standard
COMMUNICATION
Standard communication mode RS485 / Wi-fi / Bluetooth, optional :
Ethernet
GENERAL
Ambient temperature range
30°C to 60°C
Night-time power consumption <1 W
Topology Transformerless
Degree of protection IP65
Permissible relative humidity range
-
Max. altitude.
Operating
4000 m
<
25 dB
Weight
.2 kg
Cooling Natural
Dimensions 349 x 344 x 164 mm
Display LCD,
App via Bluetooth
Warranty 10 years
Standards
(electromagnetic compatibility) EN 61000-6-2, EN 61000-6-3, EN 61000-3-2, EN 61000-3-3,
EN 61000-3-11, EN 61000-3-12
Safety standards IEC 62109-1/2, IEC 62116, IEC 61727, IEC 61683, IEC 60068 (1,2,14,30)
Network standards
4105, VDE V 0126-1-1, V 0124-100, IEC 0-21, G98 / G99, C10/11, EN 50549, RD1699
Sofar-4KTLM-G3

Data sheet

Inverter power
4000VA
MPPT/PWM
MPPT
Phase
Monophasé
Number of MPPT
2 MPPT

Specific References

UPC
768563819896
EAN13
0768563819896
