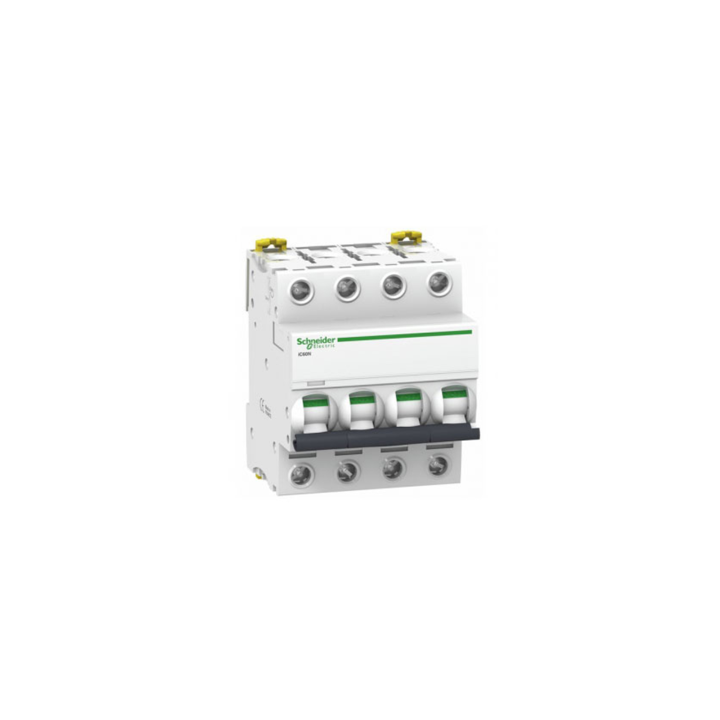

• Schneider tetra 25A circuit breaker

Schneider tetra 25A circuit breaker

€53.80
Tax included
R9F64425
0712971133396

- Circuit breaker Schneider 25A
- RESI9
- 4-pole

Comments (0)

No customer reviews for the moment.

Main
Range Resi9
Product name Resi9 MCB
Type of product or component Miniature circuit-breaker

Device

application
Distribution

4P

Pole description

4

Number of protected poles
[In] rated operating current 25 A at 30 °C

C.

Mains type
a.

T

rip technology Thermal-magnetic

C

Trip curve

capacity

Breaking

.

3000 A Icn at 400 V a.c
50/60 Hz in compliance with EN/IEC 60898-1
Standards EN/IEC 60898-1
Product certifications CEBEC
Supplementary
Mains frequency 50/60 Hz
[Ue] rated operating voltage 400 V AC 50/60 Hz

5

Magnetic tripping limit
...10 x In

3

Limiting class
according to EN/IEC 60898-1
[Ui] rated insulation voltage 440 V AC 50/60 Hz

4

[Uimp] rated impulse withstand voltage
kV

switch

Control type Rocker
Signaling
local Indication ON/OFF
Installation mode Snap-on
Mounting bracket DIN rail

b

Compatibility of distribution block and comb Bottom:
i-connect

8

9 mm pitch
Height 85 mm
Width 72 mm
Depth 75 mm
Embedding depth 44 mm

0

Product weight
.43 kg
Color White

life

Mechanical
xml-ph-0031@deepl.inta.
50/60 Hz conforming to EN/IEC 60898-1
Description of optional interlocks Padlock in OFF position
Connection mode Tunnel terminals (bottom) - <= 16 mm² - flexible
Tunnel type terminals (bottom) - <= 25 mm² - rigid
Tunnel type terminals (top) - <= 25 mm² - rigid
Tunnel type terminals (top) - <= 16 mm² - flexible

Tightening2

torque
N.m
Environment
Degree of protection IP IP20 in accordance with IEC 60529
IP40 (modular housing) in accordance with IEC 60529

2.

Pollution level
in accordance with EN/IEC 60898-
1
Overvoltage category III

-20

Operating temperature
to 60 °C

-40

Ambient temperature for storage
to 80 °C
R9F64425

Specific References

UPC
712971133396
EAN13
0712971133396
